Overview

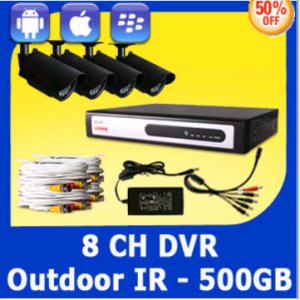

The kit DS-8142-500GB includes a 8 CH H.264 standalone DVR with 500GB HD and 4 outdoor night vision security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
DVR Features
8 CH H.264 Surveillance DVR
1TB HD Installed
H.264 Hardware Compression
Video Input / Output: BNC 8/ BNC 1
Audio Input / Output: RCA 1 / RCA 1
Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
Signal System: NTSC / PAL
Display: 240 fps
Record: 240 fps
Remote Access: Internet Explorer or Net viewer Software
PTZ via RS485 Port
Support Remote View via Smart Phone & 3G Mobile with each of those systems below:
a) iPhone™
b) Blackberry™
c) Windows™
d) Symbian™
e) Google Android™
Camera Feature
1/4" Color CMOS Image Sensor
420 TV Lines, Horizontal
6.0mm Lens
IR Irradiation Distance: up to 30' (10m)
11 Infrared LEDs
Mount: Ceiling or Wall
Video Connector: BNC
Power Connector: RCA 12V DC
Package Includes
(1) D7828HT Surveillance DVR with 500GB HD
(4) C9394VD Indoor/outdoor Security Camera
(4) X1802BD 60FT Video+Power All-in-one Cable
(1) Power Adapter
(1) Ground wire
(1) 1 to 5 Splitter Cable
(1) User's Manual
