Overview

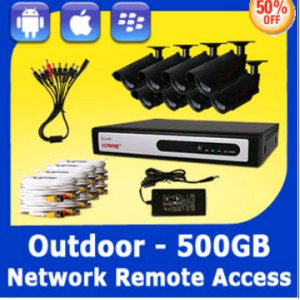

The kit DS-8182-500GB includes a 8 CH H.264 standalone DVR with 500GB HD and 8 night vision security cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
The DVR D7828HT is an 8 channel, fully integrated, real time, and hardware based standalone digital video recorder. With network access, motion detection, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
The cameras included in the kit are 1/4" color CMOS IR night vision Outdoor & indoor cameras. All cables and power supplies are included.
DVR Features
8 CH H.264 Surveillance DVR
500GB HD Installed
H.264 Hardware Compression
Video Input / Output: BNC 8/ BNC 1
Audio Input / Output: RCA 1 / RCA 1
Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
Signal System: NTSC / PAL
Display: 240 fps
Record: 240 fps
Remote Access: Internet Explorer or Net viewer Software
PTZ via RS485 Port
Support Remote View via Smart Phone & 3G Mobile with each of those systems below:
a) iPhone™
b) Google Android™
c) Blackberry™
d) Windows Mobile™
e) Symbian™
Camera Feature
1/4" Color CMOS Image Sensor
420 TV Lines, Horizontal
6.0mm Lens
IR Irradiation Distance: up to 30' (10m)
11 Infrared LEDs
Mount: Ceiling or Wall
Video Connector: BNC
Power Connector: RCA 12V DC
Package Includes
(1)D7828HT with 500GB HD
(8)C9394VD Indoor/outdoor Camera
(8)X1802BD 60FT Video+Power All-in-one Cable for Camera
(1)Power Adapter
(1) Ground wire
(1) 1 to 9 Splitter Cable
(1) User's Manual
